TECHNICAL DATA AND STANDARD ACCESSORIES

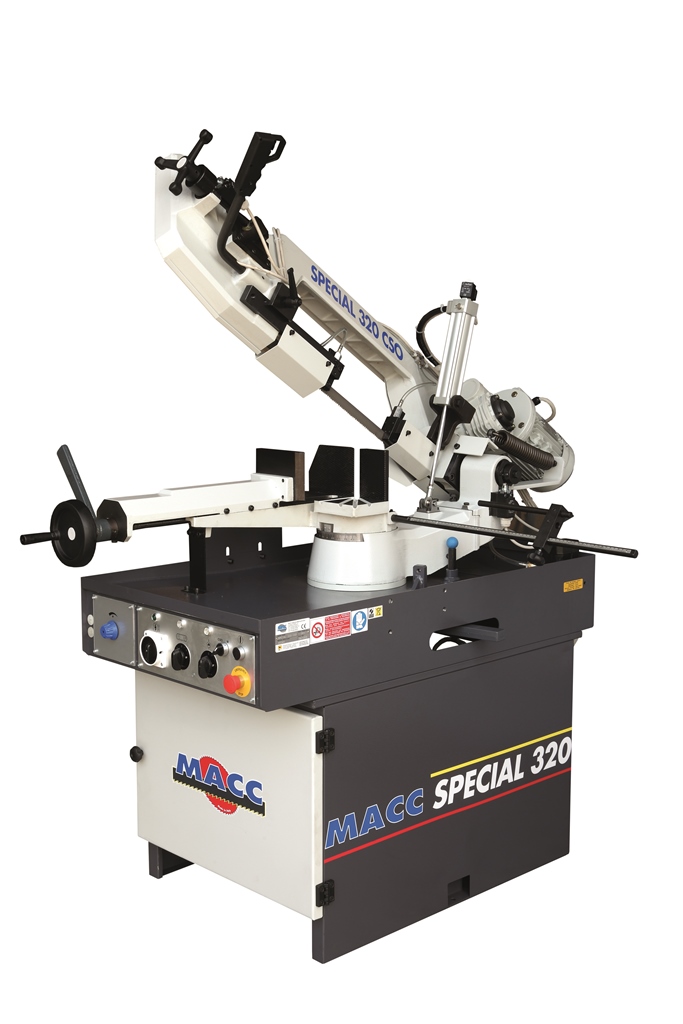

• Sawing machine with bow falling controlled by a hydraulic circuit upon cutting, bar feeding and vice closure manually operated, manual head return.
• Vertical rotation on bolt with adjustable tapered bearings without backlash.
• High-capacity band control by two-speed motor and special reducer with bronze gear and tempered and ground worm screw
• Appropriately dimensioned flywheels.
• Strong band guides with tight stress-raiser bearings and adjustable widia tips.
• Band stretching is obtained by electro-mechanical blade tensioner with microswitch.
• Vice with a device for swift locking by excentric means
• Accident-preventing devices on the flywheel casing, on the control handle, and on the blade.
• Hydraulic cylinder for controlled descent
• Cutting thickness 1,2 mm
• Cutting range 0° to 60° right
• Adjustable stop for cuts of the same size
• 24 V low tension plant
• 0,06 kW power-driven pump for band cooling

ACCESSORIES ON REQUEST
