Description

TECHNICAL DATA AND STANDARD ACCESSORIES

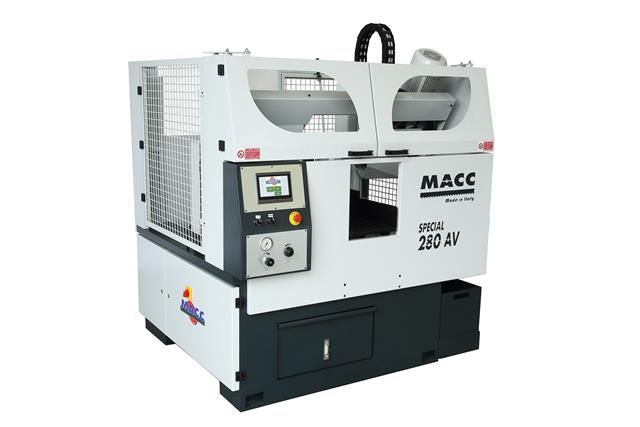

Automatic CNC hydraulic shear performing cuts from 90° and produced according to the current safety standards
Automatic cutting cycle
Operation:
1. Material feeding
2. Fixed vice lock
3. Rotation of the blade and delivery of the coolant, bow downfeed untill the finishing of the cut, feeding carriage return until the fixed measure
4. Bow return
5. Vice opening
6. Cycle repetition
Step by step hydraulic feeding without lenght limit
Digital control of quantity and cutting lenght
Hydraulic jack with regulation of cutting pressure
Blade tensioning obtained through manual rotation of the handwheel and guaranteed by electro-mechanical switch
Machine equipped with chip extractor
Blade cleaning device with brush
Bimetal blade 3200 x 27 x 0,9
Power jack hydraulic 0,55 kW
Cutting thickness 1,2 mm
Material feeding stroke 600 mm
Overall dimensions: 3500 mm x 1800 mm x 2000 mm
Electronic pump 0,09 kW
End bar can not be fed, minimum 50 mm
Speed variator 0-90 mt/1’
Vice pressure regulator
Touch screen CNC panel with trim in automatic
Coolant Tank for the collection and recycling of cutting fluid
Maximum material weight for safe feeding operation: 750 kg

ACCESSORIES ON REQUEST
