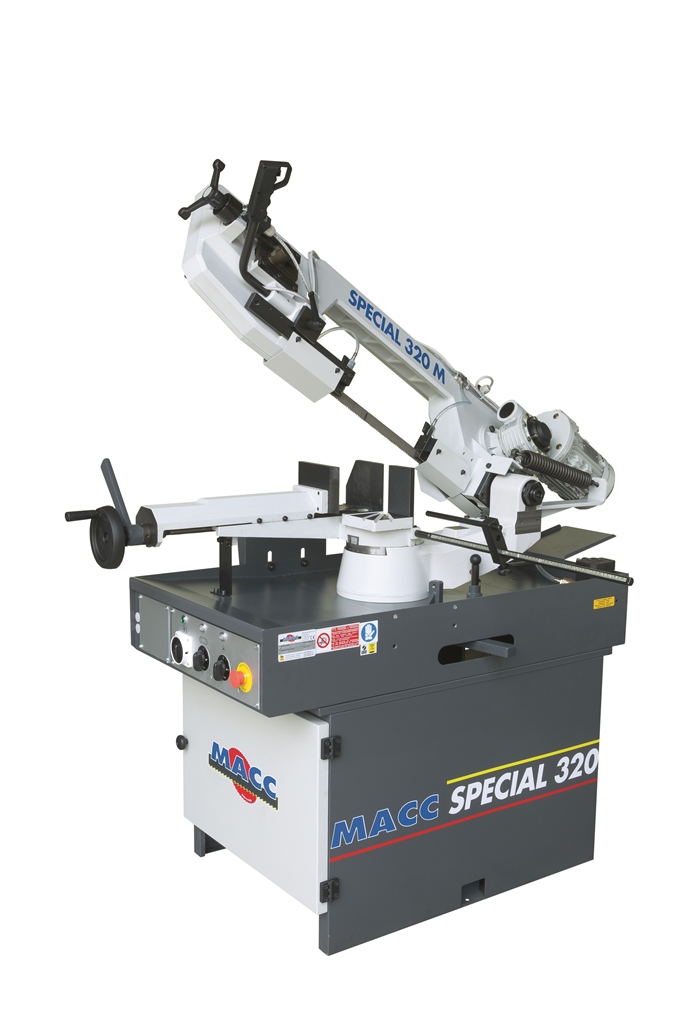

SPECIAL 320 M

Categories: ,

Description

TECHNICAL DATA AND STANDARD ACCESSORIES

  • Vertical rotation on bolt with adjustable tapered bearings without backlash.
  • High-capacity band control by two-speed motor and special reducer with bronze gear and tempered and ground worm screw
  • Appropriately dimensioned flywheels.
  • Strong band guides with tight stress-raiser bearings and adjustable widia tips.
  • Band stretching is obtained by electro-mechanical blade tensioner with microswitch.
  • Vice with a device for swift locking by excentric means
  • Accident-preventing devices on the flywheel casing, on the control handle, and on the blade.
  • Cutting thickness 1,2 mm
  • Cutting range 0° to 60° right
  • Adjustable stop for cuts of the same size
  • 24 V low tension plant
  • 0,06 kW power-driven pump for band cooling

ACCESSORIES ON REQUEST

  • Hydraulic for controlled descent
  • Pneumatic installation for vice
  • SINGLE-PHASE motor 69 m/1′
  • Speed variator for 20-90 m/1′
