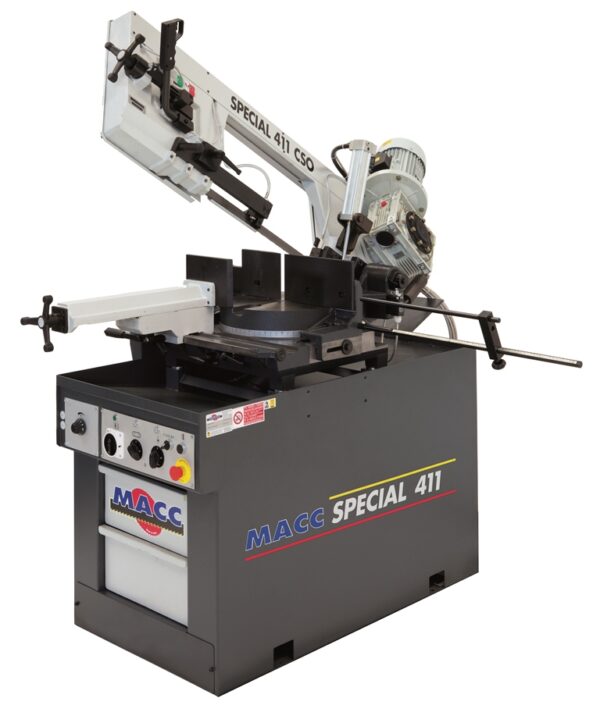

SPECIAL 411 CSO

Categories: ,

Description

TECHNICAL DATA AND STANDARD ACCESSORIES

  • Sawing machine with bow falling controlled by a hydraulic circuit upon cutting, bar feeding and vice closure manually operated, manual head return
  • Vertical rotation on bolt with adjustable tapered bearings without backlash
  • High-capacity band control by two-speed motor and special reducer with bronze gear tempered and ground worm screw
  • Appropriately dimensioned flywheels
  • Strong band guides with tight stress-raiser bearings and adjustable widia tips
  • Blade tensioning obtained through manual rotation of the handwheel and guaranteed by electro-mechanical switch
  • Vice with a device for quick approach
  • Accident-preventing devices on the flywheel casing, on the control handle and on the blade
  • Hydraulic cylinder for controlled descent
  • Cutting thickness 1,2 mm
  • Cutting range 45° left 60° right
  • 24 V low tension plant
  • Adjustable stop for cuts of the same size
  • Pedestal with chip collection tray and removable tank for coolant
  • Machine pre-arranged to be moved on transpallet
  • 0,06 kW power-driven pump for band cooling

ACCESSORIES ON REQUEST

  • Speed variator for 20-90 m/1′
