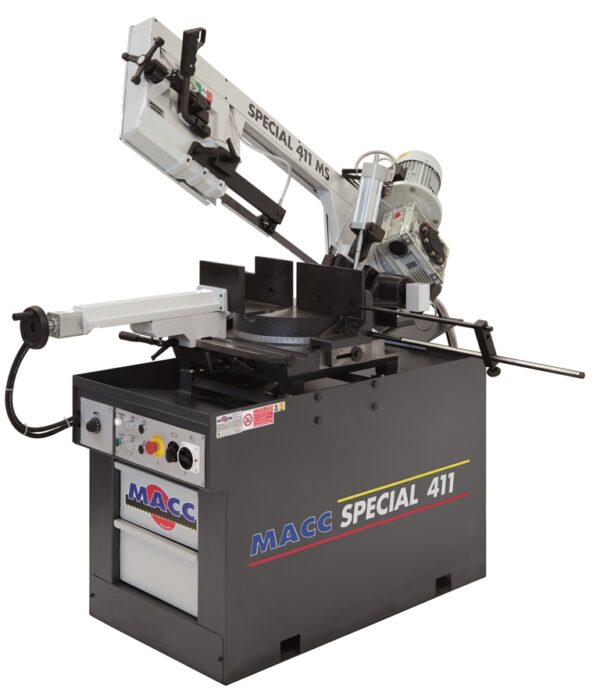

SPECIAL 411 M/S

Description

TECHNICAL DATA AND STANDARD ACCESSORIES

  • Vertical rotation on bolt with adjustable tapered bearings without backlash
  • High-capacity band control by two-speed motor and special reducer with bronze gear tempered and ground worm screw
  • Appropriately dimensioned flywheels
  • Strong band guides with tight stress-raiser bearings and adjustable widia tips
  • Blade tensioning obtained through manual rotation of the handwheel and guaranteed by electro-mechanical switch
  • Vice with a device for quick approach
  • Accident-preventing devices on the flywheel casing, ont the control handle and on the blade
  • Cutting thickness 1,2 mm
  • Cutting range 45° left 60° right
  • Adjustable stop for cuts of the same size
  • Pedestal with chip collection tray and removable tank for coolant
  • Machine pre-arranged to be moved on transpallet
  • 0,06 kW power-driven pump for band cooling
  • Operation:
    Cycle start is obtained by pressing the relevant start button. The machine performs the following operations during the cutting cycle:

    1. vice closing and activation of band motor
    2. cutting bow downstroke
    3. return of bow to initial position
    4. band motor stop
    5. vice opening
  • Possibility of manual cut

ACCESSORIES ON REQUEST

  • Speed variator for 20-90 m/1′
